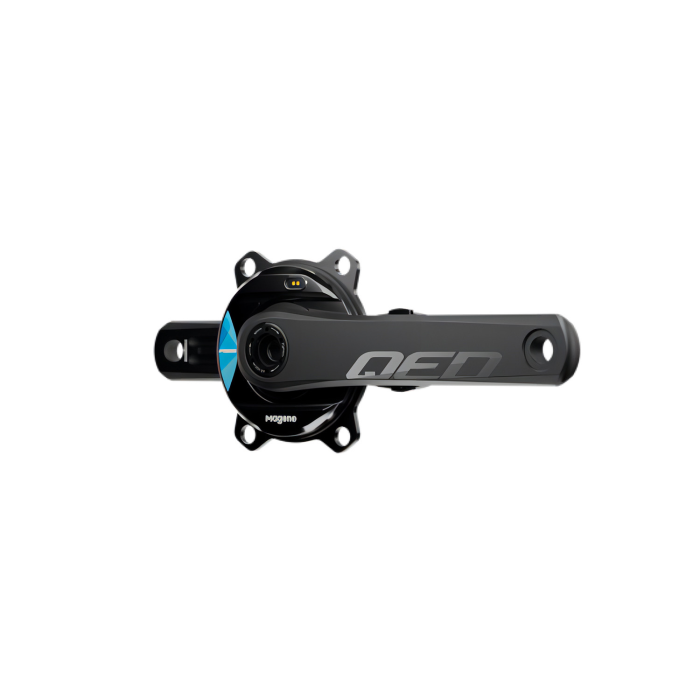

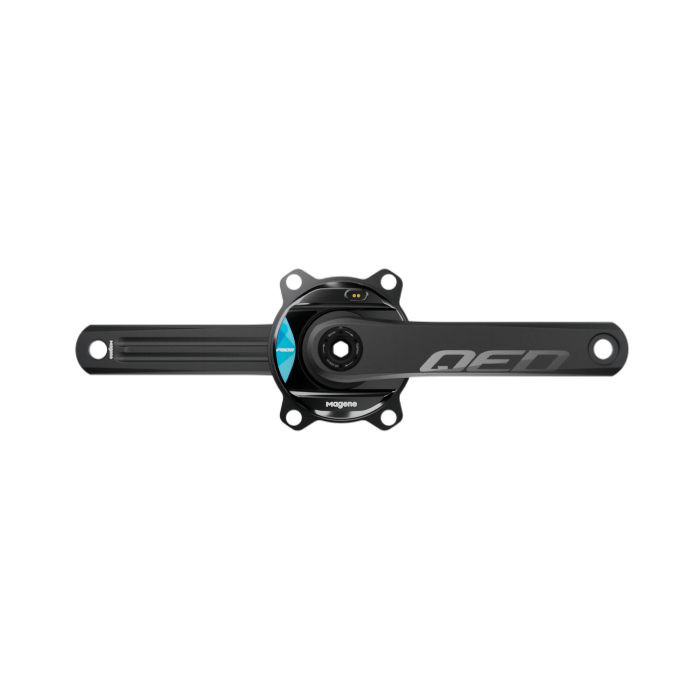

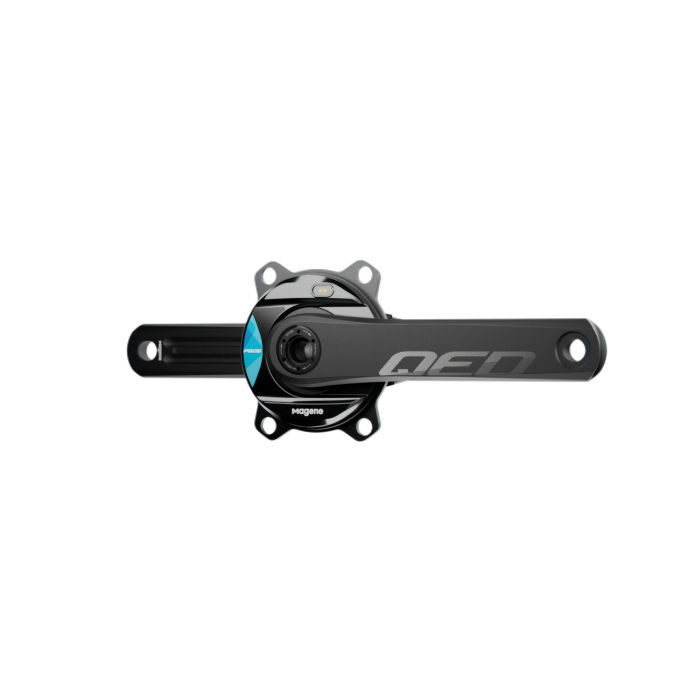

QED P505 Power Meter

Specifications
Ave. Weight	618g
Crank Length	165mm, 167.5mm, 170mm, 172.5mm, 175mm
Spindle Type	DUB
Power Accuracy	±1%
Power Range	0~2500W
Cadence Range	20~240RPM
Data Function	Power, Cadence, Left-right Balance, Pedaling Smoothness
Calibration Method	Auto-calibration, Backpedaling Calibration, Manual Calibration
Charging	Magnetic Charging
Battery Life	200h
Q-Factor	147mm
Waterproof Grade	IPX7
Wireless Protocol	ANT+, Bluetooth

Specifications

Ave. Weight

618g

Crank Length

165mm, 167.5mm, 170mm, 172.5mm, 175mm

Spindle Type

DUB

Power Accuracy

±1%

Power Range

0~2500W

Cadence Range

20~240RPM

Data Function

Power, Cadence, Left-right Balance, Pedaling Smoothness

Calibration Method

Auto-calibration, Backpedaling Calibration, Manual Calibration

Charging

Magnetic Charging

Battery Life

200h

Q-Factor

147mm

Waterproof Grade

IPX7

Wireless Protocol

ANT+, Bluetooth

Precision CNC, Integrated Molding

QED P505 power meter’s crank is made of ultralight7075 aircraft-grade aluminum, wihich adopts II-GEN hollow crank technology to strengthen the structure. The crank is integrally molded by applying precise CNC and deep-hole drilling techniques. In comparison with other brand products under the same weight, the vertical stiffness of the QED crank is 12% stronger.

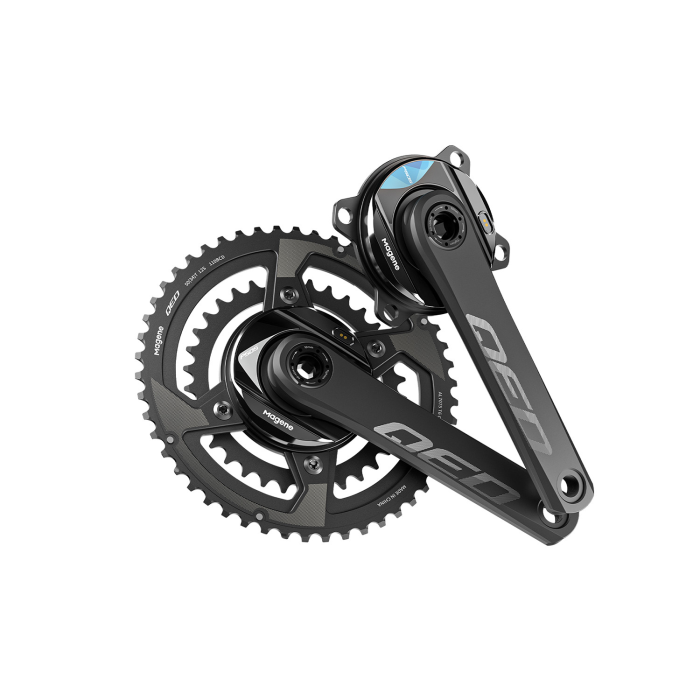

110BCD Configuration

The product adopts the widely popular 110BCD four-bolt specification in the market, which reduces weight and has more comprehensive compatibility.

Accurate and Reliable Data Measurement

QED P505 power meter features a top-class strain gauge supplier, optimized gauge bonding method and position, and all strain gauges are taken through a stress release process. The strain gauge curve is coupled with the acceleration sensor curve, magnet induction is not needed for cadence measurement. Even when riders are riding on bumpy cobblestone roads, the cadence data is still accurate.

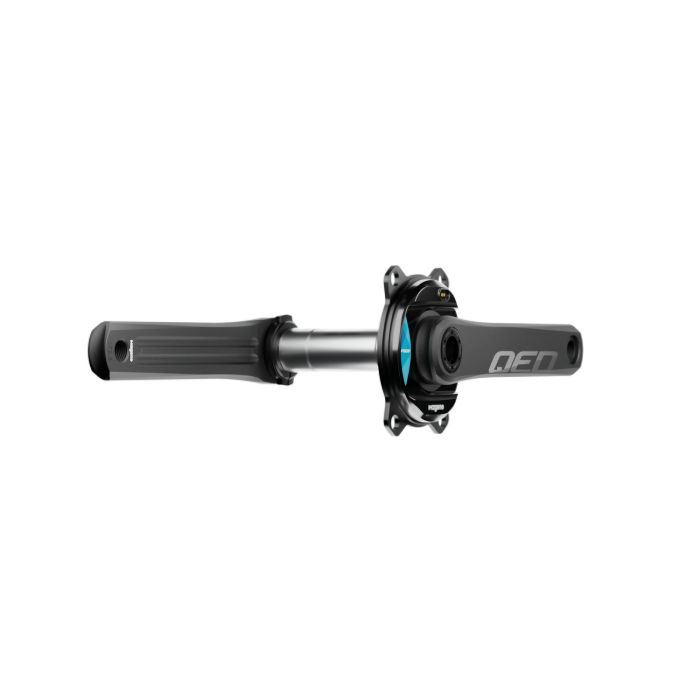

Highly Compatible DUB Spindle

The spindle is an important structure connecting the frame, and the design technology has a vital influence on the drivetrain efficiency and durability. QED spindle is made of 7075 aircraft-grade aluminum. The larger diameter design of DUB has a lighter weight, better stiffness and better waterproof performance than the common 24mm steel spindle.

±1% Power Accuracy, Accurate Data Collection

The QED P505 power meter can meticulously learn pedaling status and scientific quantification of riding capability. QED P505 power meter has 4 kinds of power data: power, cadence, left and right balance, and pedaling smoothness. With years of power research and development of advanced algorithms, the measured data is sensitive and reliable, the power accuracy up to ±1%. Riders can master their riding ability in all aspects and carry out targeted riding training.

Super Easy Calibration Operation

Auto-calibration: Smart auto-calibration without any operation.

Backpedal calibration: Backpedal 5 cycles to complete calibration.

Manual calibration: Support APP calibration and bike computer zero calibration.

Perfectly Compatible with Fitness Devices and Apps

Compatible with various ANT+ and Bluetooth devicesand can be connected to major brand bike computers such as Magene, Garmin and Bryton, etc. And training APPs such as Onelap, OnelapFit, Zwift, etc. So that you can record data in multiple interfaces for one workout.
